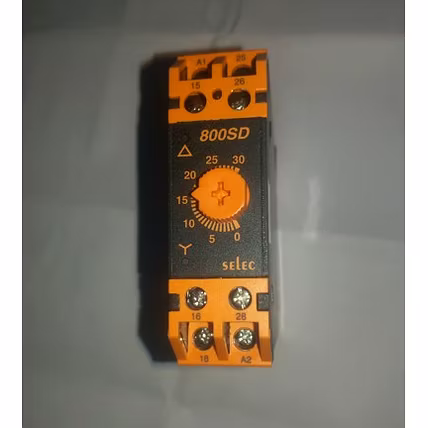

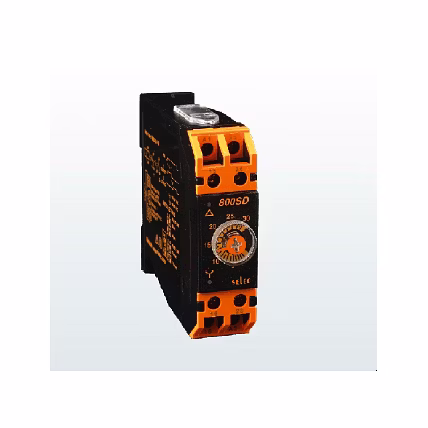

Star Delta Function Timer SELEC 800SD-2-230
Price upon request-
Product is not available
Star Delta Function Timer
Product: 800SD-2
Star delta
2 Time ranges
LED indications : Star Relay ON, Delta Relay ON
Supply voltage: 110V AC / 230V AC/ 415V AC
Display Specifications
LED Indications Star RelayON, Delta RelayON
Output Specifications
Relay Contact 1 C/O Relay each for Star & Delta
Contact Rating 5A @ 250V AC
Functional Specifications
Modes Star - Delta
Time Ranges Runup time range :
30 / 60sec
Change Over : 50 / 100msec
(user selectable via DIP switches)
Reset On power interruption
Reset time < 100msec
-
Additional Information
Brief Specifications
Operating Modes Star-Delta
Range Run Time Range: 30 / 60sec,
Change Over Time: 50 /100msec ( user selectable via DIP switches)
Accuracy Setting: ±5% of Full Scale, Repeat: ±0.5% or 50msec
Relay Contact 1 C/O Each For Star And Delta
Contact Rating 5A @ 250V AC or 24V DC
Supply Voltage 230V AC / 110V AC / 230 to 415V AC
Size 22.5mm
Mounting Type DIN Rail Mount
Certification CE
Auxiliary Supply Specifications
Supply Voltage 230V AC / 110V AC / 230 to 450V AC (50 / 60Hz)
-15% to 10% tolerance
Power Consumption 10VA max
-
