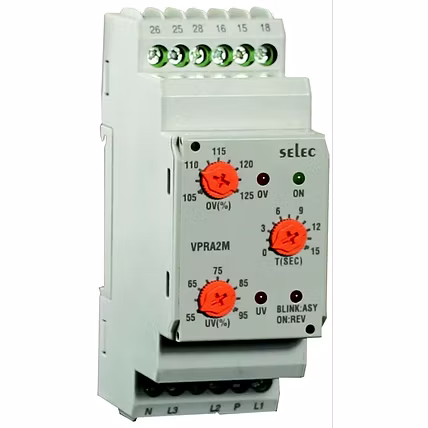

SELEC VPRA2M-CE Protection Relay, Three-Phase, analog, Over/Under Voltage / Asymmetry / Phase Sequence / Phase Failure / Neutral Loss, 230VAC, 1DPDT, 35mm DIN Rail
Price upon request-
Product is not available
Voltage protection relay for 220V (L-N)
Product: VPRA2M-CE
Single phase and Three phase voltage Protection relay
Monitors: Over / Under Voltage, Phase asymmetry, Phase failure and Phase sequence.
Supply Voltage: 127 to 288V AC
-
Additional Information

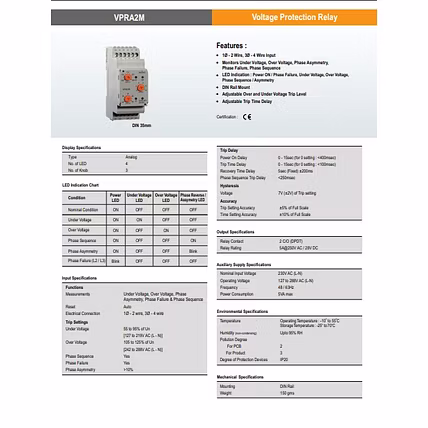

Brief Specifications
Measuring Parameter Under Voltage, Over Voltage, Phase Asymmetry, Phase Failure, Phase Sequence
Electrical Connection 1Ø-2W, 3Ø-4W
Display LED Indication
Time Ranges Trip Time Delay: 0-15sec,
Power ON Delay: 0-15sec,
Recovery Time Delay: 5sec ± 200ms
Accuracy Trip setting: ±5% of Set Value,
Time Setting: ±10% of F.S
Output Contact 2 C/O (DPDT )
Output Rating NO,NC: 5A @ 250V AC /28 V DC
Operating Voltage 127 to 288V AC (L-N)
-
