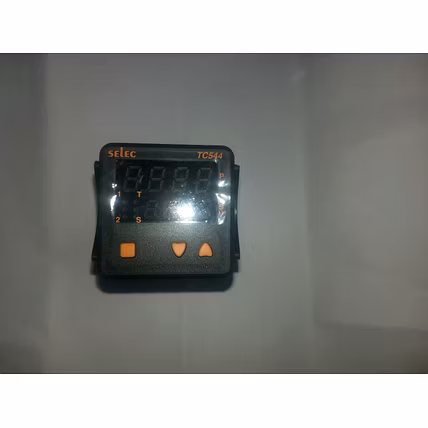

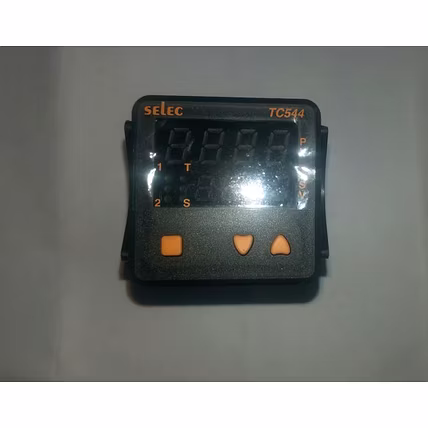

SELEC TC544B Red + Green Dual Display, 2 SPST Relay Output
Price upon request-
Product is not available
Red + Green Dual Display, 2 SPST Relay Output
Product: TC544B
4 digit Dual display temperature controller
(TC: J, K, T, R, S/ RTD: PT100) sensor input
ON-OFF/Auto-tune PID control
Dual set point
5A Relay/ 12V SSR control output
Auxiliary 5A Relay output
48mm x 48 mm compact size
Short depth
Heat-Cool PID and Dwell timer functions
Panel mount
90 to 270V AC/DC supply voltage
CE, RoHS certified
-
Additional Information
Brief Specifications
Display Type 7 Segment LED Dual Display
Display Configuration 4 + 4 Digits
Type of Input Thermocouple (J,K,T,R,S) / RTD (PT100)
Resolution 0.1/1° for TC/RTD (fixed 1° for R and S TC)
Accuracy For TC (J, K, T) inputs: 0.25% of F.S. ± 1 °For R & S inputs: 0.5% of F.S. ±2(20min of warm up time) For RTD inputs: 0.1% of F.S ±1°
Control Output RELAY or SSR.
Auxiliary Output RELAY
Control Mode Auto Tune / Selftune PID / ON-OFF
Feature Heat Cool PID , Dwell Timer
Supply Voltage 90 to 270V AC/DC
Size 48 x 48mm
Mounting Type Panel Mount
Certification CE
-
