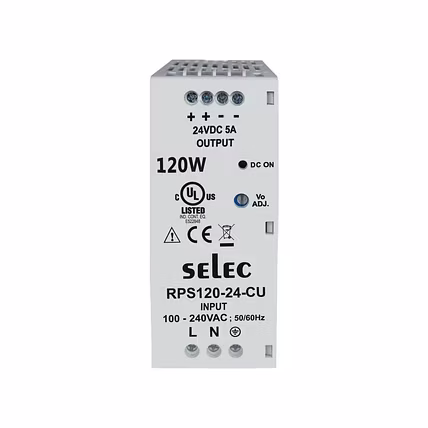

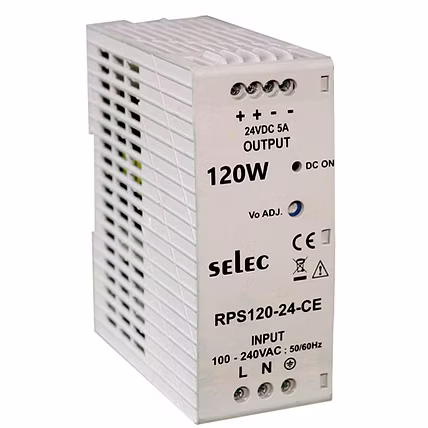

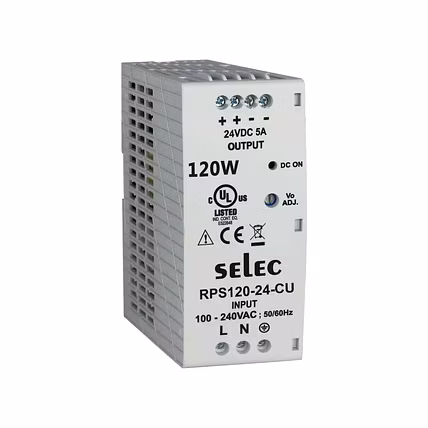

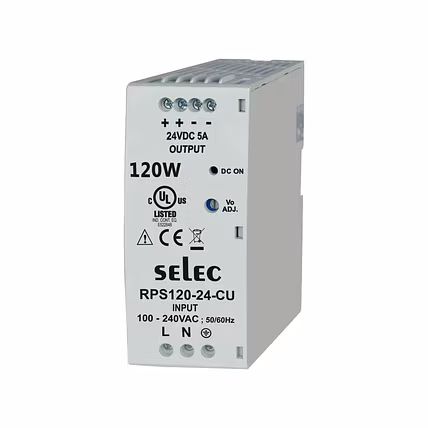

Selec RPS120-24 Power Supplies
2826.00
2826.00
Inclusive of all taxes
You Save: 0. Discount 0%
-
Product is not available
120W Series
Product: RPS120
Supports 90 - 264 VAC / 127 - 370 VDC
Efficiencies up to 89 %
Protection against short circuit, overload, overvoltage & over temperature
Cooling by free air convection
-
Additional Information
Product Code Description
RPS120-12-CU 96W, 12V/8A DIN rail mounted Power Supply in Plastic Housing
RPS120-15-CU 120W, 15V/8A DIN rail mounted Power Supply in Plastic Housing - UL Certified
RPS120-24-CU 120W, 24V/5A DIN rail mounted Power Supply in Plastic Housing - UL Certified
RPS120-48-CU 120W, 48V/2.5A DIN rail mounted Power Supply in Plastic Housing - UL Certified
Brief Specifications
Input Voltage 90 - 264 VAC (127 - 370 VDC)
Input Frequency 50/60 Hz
Inrush Current < 48 Amps; Measured at 264 VAC, 25°C Ambient, Cold start
Output Voltage 12V to 48V
Output Power 120 W
Voltage Tolerance ± 1 %
Line Regulation < 1% of Vout
Load Regulation ± 1 %
Turn On Time < 1 sec @ 230 VAC & < 3 sec @ 115 VAC, Full load
Hold Up Time ≥60ms at 230V AC & ≥15ms at 115V AC, Full load
Rise Time < 100 ms
Overload Protection > 110% of rated output current; Hiccup type; Autorecovery
Overvoltage Protection Latched type; Input AC power to be recycled to recover the power supply
Output Short Circuit Protection Hiccup mode when output is shorted; Autorecovery type
Operating Temperature - 25°C to + 70°C; De-rate linearly above 50°C from 100 % load at 50°C to 50 % load at 70°C,- 25°C to 0°C start-up is guaranteed with specification deviation
Storage Temperature - 40°C to + 85°C
Cooling Natural convection cooled
Humidity 5 to 95 % RH, Non condensing
Altitude 2000 m
Dimension 43 x 109.8 x 102.7 mm (W x H x D)
Weight 350 gms
Mounting 35 mm Din rail
-
