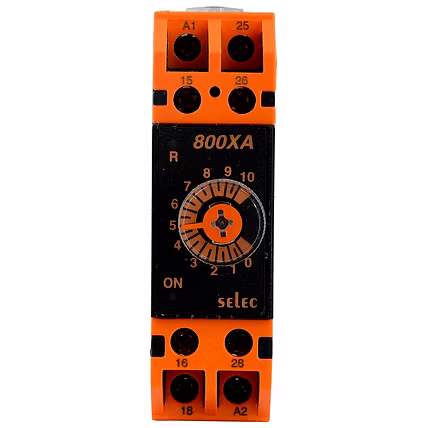

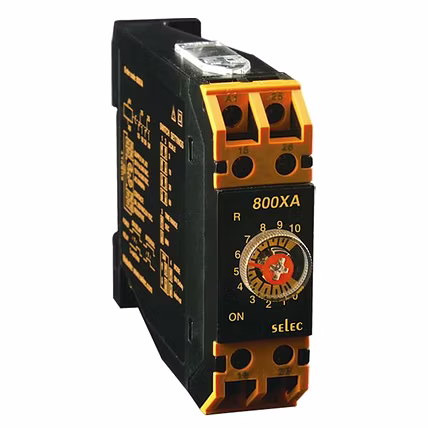

Selec 800XA On delay / Interval, 8 Time Ranges, Universal supply
Price upon request-
Product is not available
22.5mm Din Rail Timer
800XA
ON delay / Interval
8 time ranges
Universal supply voltage
LED Indications : Power ON, Relay ON
DIN Rail / Back panel mount
Product Code Supply Voltage Certification
800XA 20 to 240V AC , 12 to 240V DC --
800XA-CE 20 to 240V AC , 12 to 240V DC CE
Rated power frequency IEC 61000-4-8 Level-4
Voltage dip / Short interruptions IEC 61000-4-11 Level-3
Conducted emissions CISPR-11 Class-B
Rated emissions CISPR-22 Class-A
Emission & Immunity IEC 61326-1
Safety IEC 61010-1
PFMF (Passing criteria) IEC 61000-4-8 Class-A
-
Additional Information
Operating Modes ON Delay / Interval
Range 3 / 10 / 30 / 60sec / min
Resolution 0.3 sec
Accuracy Setting: ± 5% Of Full Scale, Repeat: ± 0.5% Of 50ms (Whichever Is Greater)
Relay Contact 2 C/O SPDT
Contact Rating 5A @ 250V AC or 24V DC
Supply Voltage 20 to 240V AC, 12 to 240V DC
Size 22.5mm
Mounting Type DIN Rail Mount
Certification CE
Electrostatic discharge IEC 61000-4-2 Level-3
Electrical fast transient / Brust IEC 61000-4-4 Level-3
Electromagnetic field IEC 61000-4-3 Level-3
Surge IEC 61000-4-5 Level-3
Conducted RF IEC 61000-4-6 Level-2
-
