SELEC MFM383A Economical LCD Multifunction meter MFM383A
Price upon request-
Product is not available

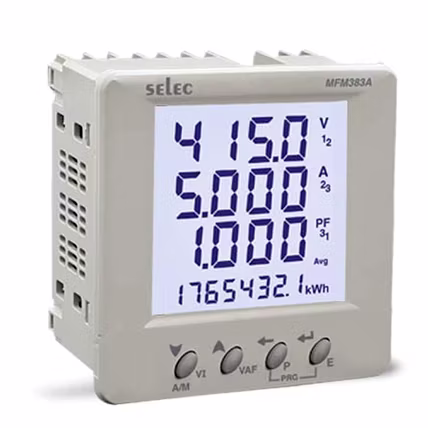

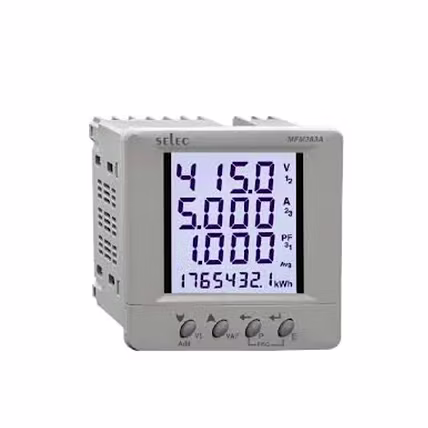

Economical LCD Multifunction meter
Product: MFM383A
Compatible for 1 phase 2 wire, 3 phase 3 wire, 3 phase 4 wire systems
11 to 300V (L-N), 19 to 519V (L-L) measurement
RS485 Communication MODBUS RTU (MFM383A-C-CE)
Accuracy of ± 0.5% for voltage & current, 0.1% for Frequency, 0.01% for PF, 1% for Power, Class 1 for Active,reactive & Apparent energy
CE RoHS certified
-
Additional Information
Brief Specifications
Display Type LCD with Backlight
Display Configuration 3 Rows of 4 Digits, 1 Row of 7 ½ Digits
Electrical Connection 3Ø - 3W, 3Ø - 4W, 2Ø - 3W, 1Ø - 2W
Type of Output Pulse Output
Features Password Protection, Energy (Active / Reactive / Apparent)
Communication Protocol RS485 and MODBUS RTU
CT Primary 1 / 5A to 10kA (Programmable for Any Value)
CT Secondary 1 / 5A (Programmable)
PT Primary 100V to 10kV (Programmable for Any Value)
PT Secondary 100V to 500V AC (L – L) (Programmable for Any Value)
Rated Input Current Nominal 5A AC (Min - 11mA Max - 6A)
Supply Voltage 85 to 270V AC (45/65 Hz)
Size 96 x 96mm
Mounting Type Panel Mount
Certification CE RoHS
-
