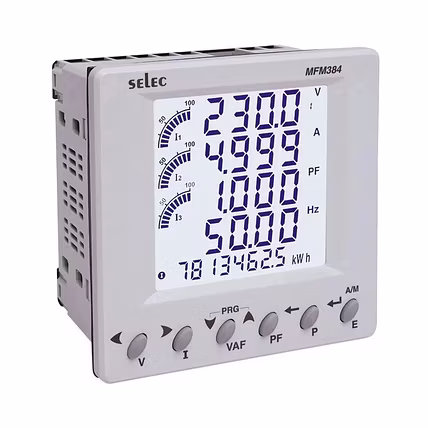

Multifunction Meter MFM384-C-CE
Price upon request-
Product is not available
Product: MFM384
Compatible for 1 phase 2 wire, 2 phase 3 wire, 3 phase 3 wire, 3 phase 4 wire systems
11 to 300V AC (L - N), 19 to 519V AC (L - L) measurement
Max / Min power Demand measurement, Import / Export Energy measurement
%THD upto 31st level, RS485 Communication MODBUS RTU protocol
Accuracy Class 0.5S / Class 1
CE, RoHS, UL & MID certified
-
Additional Information
Brief Specifications

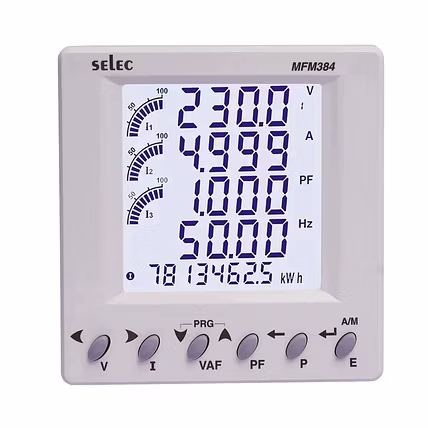

Display Type LCD with Backlight, Bar graph Representation for Current
Display Configuration 4 Rows of 4 Digits, 1 Row of 8 Digits

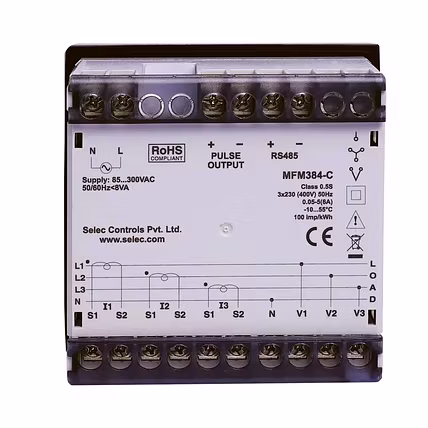

Electrical Connection 3Ø - 3W, 3Ø - 4W, 2Ø - 3W, 1Ø - 2W
Type of Output Pulse Output
Features %THD upto 31st Level, Max / Min Demand (Power), Max Demand Current, Phase Sequence Detection
Communication Protocol RS485 and MODBUS RTU
CT Primary 1 / 5 A to 10 kA (Programmable for Any Value)
CT Secondary 1 / 5 A ( Programmable )
PT Primary 100 V to 500 kV (Programmable for Any Value)
PT Secondary 100 to 500V AC (L - L) (Programmable for any value)
Rated Input Current Nominal 5A AC (Min – 11mA; Max – 6A)
Supply Voltage 85 to 300V AC / DC (45/65Hz)
Size 96 x 96mm
Mounting Type Panel Mount
Certification CE, RoHS, UL & MID
-
